Event Display

Event Display#

For visualization applications, the user can create an instance of G4JLEventDisplay([settings file]) and give it to the constructor of G4JLApplication in the evtdisplay attribute.

The constructor accepts a visualization settings file that will overwrite the default settings in the file Geant4.jl/ext/G4Vis/settings.jl. The format of the settings is Julia NamedTuple. Here is an example:

(
    display = (
        show_axis = false,
    ),
    trajectories = (
        color = :yellow,
    ),
)

Let’s define a simple detector and particle gun as generator

using Geant4
using Geant4.SystemOfUnits
using CairoMakie, Rotations, IGLWrap_jll # to force loading G4Vis extension
struct SimpleDetector <: G4JLDetector ; end

#---Materials----------------------------------------------------------------------------------
nist = G4NistManager!Instance()
m_air = FindOrBuildMaterial(nist, "G4_AIR")
m_bgo = FindOrBuildMaterial(nist, "G4_BGO")

#---Volumes------------------------------------------------------------------------------------
worldS = G4Box("world", 10cm, 10cm, 20cm)
worldLV = G4LogicalVolume(worldS, m_air, "World")
worldPV = G4PVPlacement(nothing, G4ThreeVector(), worldLV, "World", nothing, false, 0, false)

crystalS = G4Box("world", 5cm, 5cm, 10cm)
crystalLV = G4LogicalVolume(crystalS, m_bgo, "Crystal")
crystalPV = G4PVPlacement(nothing, G4ThreeVector(), crystalLV, "Crystal", worldLV, false, 0, false)

#---define getConstructor
Geant4.getConstructor(::SimpleDetector)::Function = (::SimpleDetector) -> worldPV
particlegun = G4JLGunGenerator(particle = "e-",
                               energy = 1GeV,
                               direction = G4ThreeVector(0,0,1),
                               position = G4ThreeVector(0,0,-10cm));

Now define an instance of G4JLEventDisplay. The visualization settings file is in same directory as this notebook.

#---Event Display----------------------------------------------------------------------------------
evtdisplay   = G4JLEventDisplay(joinpath(@__DIR__, "VisSettings.jl"))
G4Vis.G4JLEventDisplay((display = (backgroundcolor = :black, resolution = (1280, 720), show_axis = false, camera_rotation = (0, 0, 0), camera_zoom = 1.0), trajectories = (color = :yellow,), detector = (show_detector = true,)), G4Vis.stateChange, G4Vis.initDisplay, #undef, #undef)
#---Create the Application-------------------------------------------------------------------------
app = G4JLApplication(detector     = SimpleDetector(),          # simple detector
                      generator    = particlegun,               # primary generator to instantiate
                      physics_type = FTFP_BERT,                 # what physics list to instantiate
                      evtdisplay   = evtdisplay                 # event display
                     )

configure(app)
initialize(app)
**************************************************************
 Geant4 version Name: geant4-11-03-patch-02 [MT]   (25-April-2025)
                       Copyright : Geant4 Collaboration
                      References : NIM A 506 (2003), 250-303
                                 : IEEE-TNS 53 (2006), 270-278
                                 : NIM A 835 (2016), 186-225
                             WWW : http://geant4.org/
**************************************************************
#---Event Display is anow ready display events-----------------------------------------------------

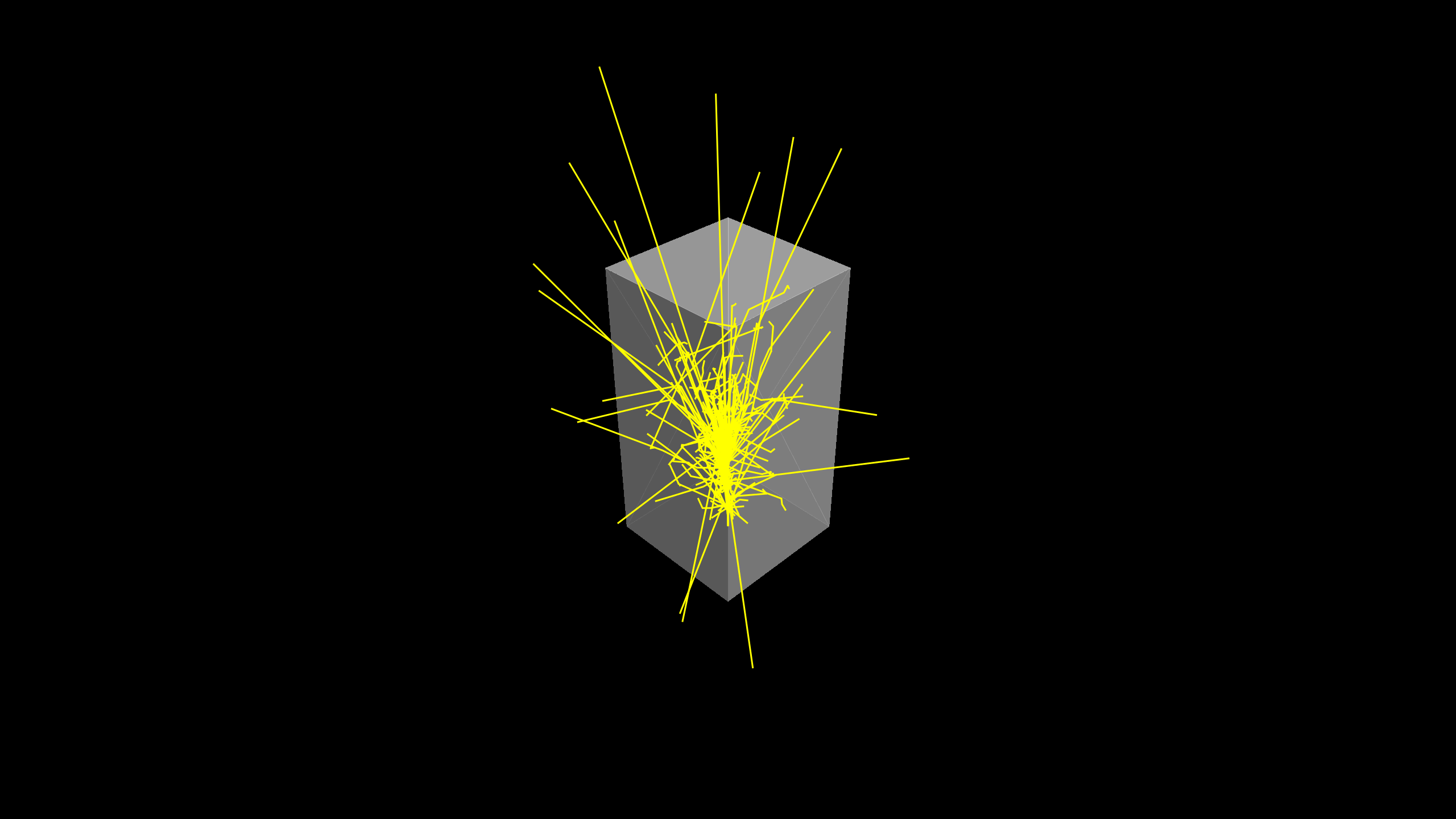

beamOn(app, 1)
display("image/png", evtdisplay.figure)
_images/1bfb1b42d507fffe23c3856fc18758f28cec093433e72bcbd99e0e95f0d34e50.png

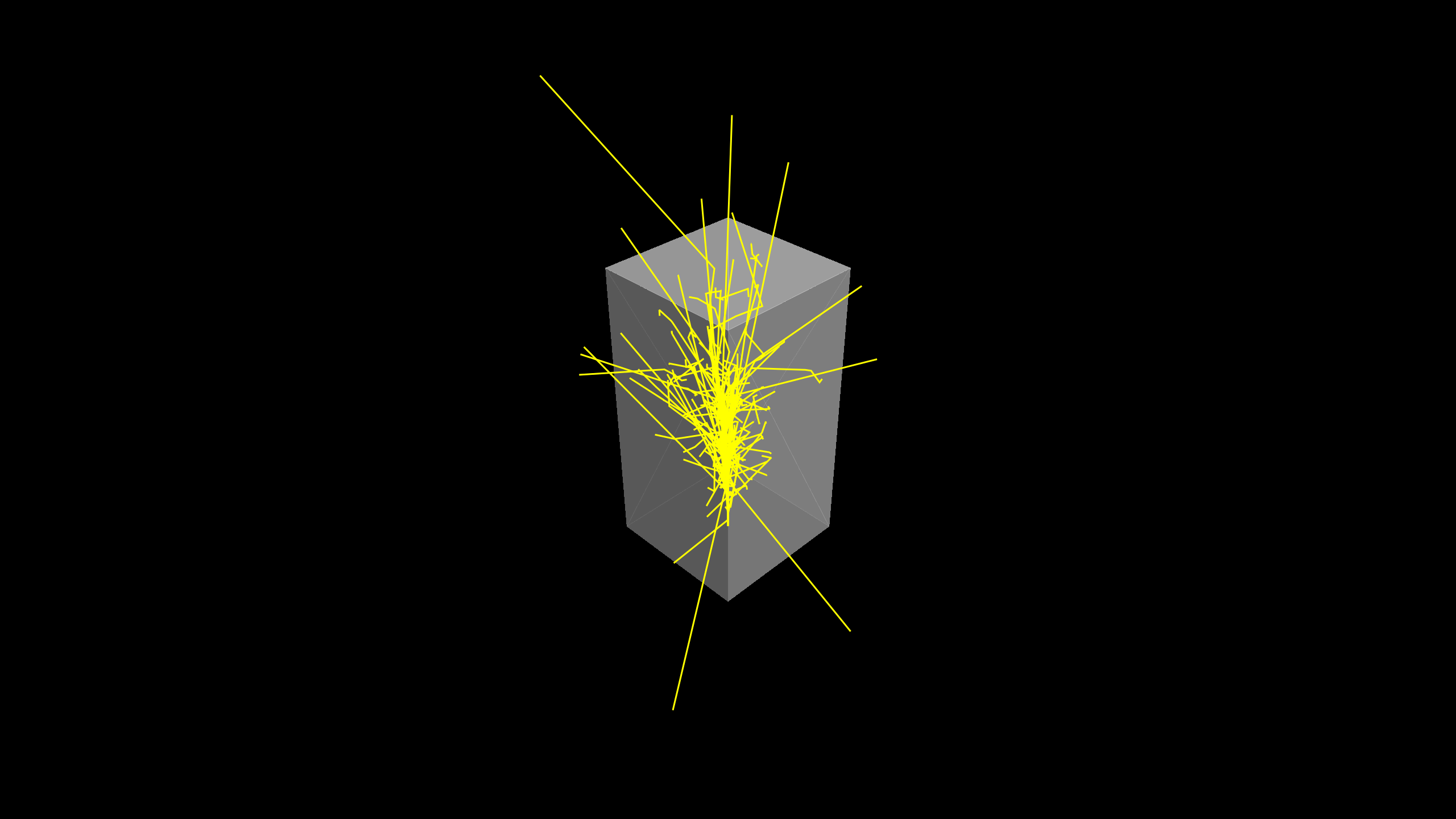

beamOn(app, 1)
display("image/png", evtdisplay.figure)
_images/abfea1250c3e708e7c25b06eddd1aee1b24e39dea8c2e4fe4c697d64184a9115.png
